Home > Power Transmission Tower >

110 Kv Tower Galvanized Flanged Big Power Line Towers Single Tube Transmission Line Monopole Tower

Product Categories

Jiayao Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

110 Kv Tower Galvanized Flanged Big Power Line Towers Single Tube Transmission Line Monopole Tower

Name: 110 Kv Tower Galvanized Flanged Big Power Line Towers Single Tube Transmission Line Monopole Tower
Brand: Jiayao
Price: 4 USD

Wholesale 110 Kv Tower Galvanized Flanged Big Power Line Towers Single Tube Transmission Line Monopole Tower from china suppliers

Brand Name : Jiayao

Model Number : 3 Legs Angle Tower

Certification : ISO9001:2008 SGS COC

Place of Origin : China

MOQ : 4 Tons

Price : >=4 Tons,US$1600;>=100 Tons,US$1000

Payment Terms : L/C, T/T

Supply Ability : 500 -1000tons per month

Delivery Time : 15-25Days

Packaging Details : Packed In Wooden Boxes Or Bundled With Galvanized Sheets

Standard : ANSI/TIA-222-G-2005

Material : Steel

Welding : AWS D 1.1

Product name : Power Transmission Line Tower

Height : 5-200M,be customizabled

Wind Speed : 30-180 km/h

Lifetime : More than 20 Years

Application : Telecommunication, broadcasting, and power transmission

Rated Voltage : 10KV 33KV 66KV 110KV 132KV 220KV 380KV 400KV 500KV 750KV 1000KV

Surface Treatment : Hot-dip Galvanized

Contact Now

JIAYAO CO., LTD

1.Product Description

Height	From 10M-100M or according to client’s requirement
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q235B/A36,Yeild Strength≥235MPa
	Q345B/A572,Yeild Strength≥345MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	10kV to 500kV
Tolerance of the dimension	According to client’s requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ISO9001:2008
Length of per section	Within 13M once forming
Welding Standard	AWS(American Welding Society)D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client’s requirement
Life Period	More than 30 years, it is according to installing environment

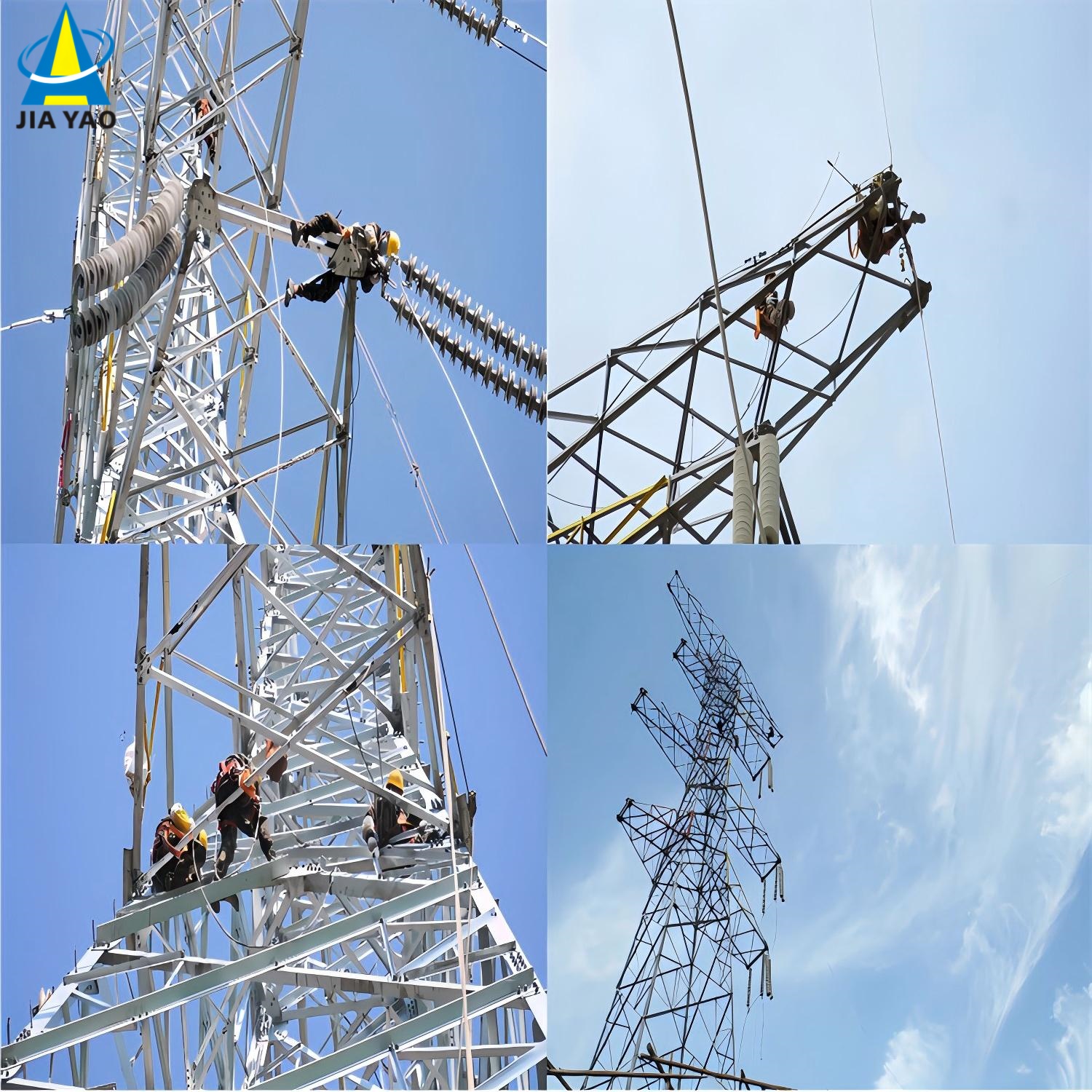

Installation, construction, testing

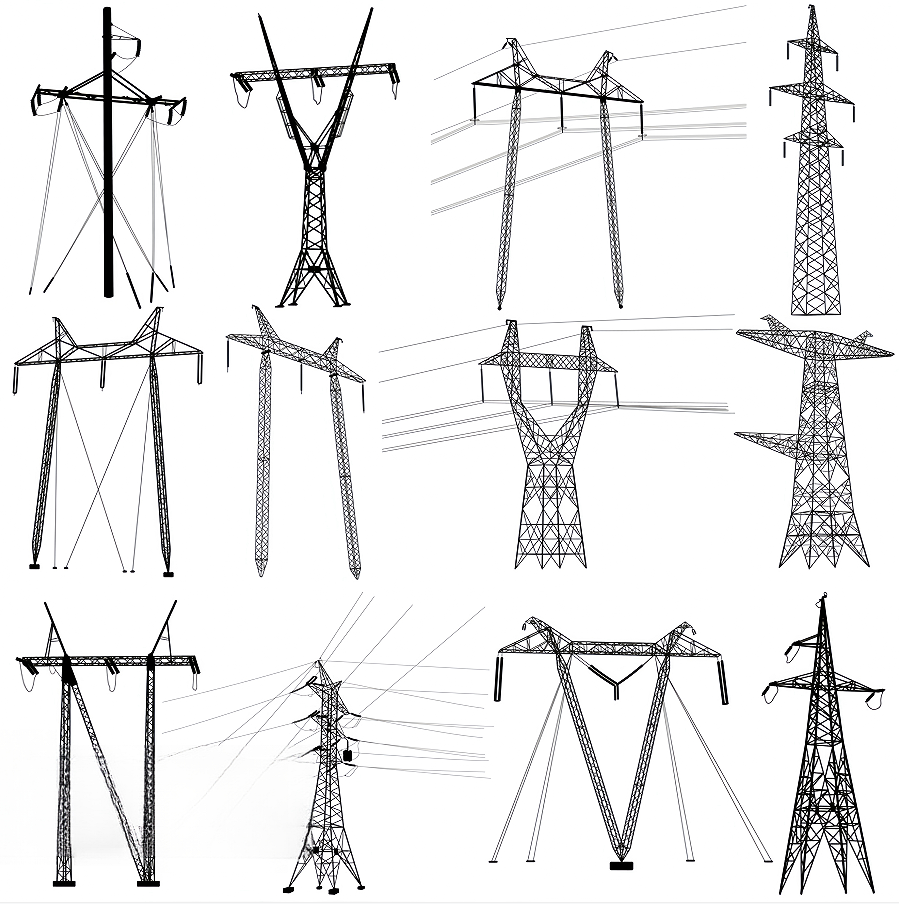

Style display

Accept customer customization requirements

Wine cup Type
Usually used for 110 kVand above voltage levelpower transmission linesespecially suitable forheavy ice area or multi-thunder area.

Cat's Head Type
It is a common towertype for power trans-mission lines of 110 kVand above voltage level.lts advantage is that itcan effectively save theline corridor.

'T' 'F''H'Type
Mainly used as tension-resistant tower and cornertower, it is the commonlyused tower type for 220kVand above voltage levelpower transmission lines.

Drum Type
It is a double circuit towercommonly used towertype, the conductor isdrum-shaped arrangementand thus the name.

2.Packaging & Shipping

3.Cooperation Customers

4.Certifications

5.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.

If you need it, we will welcome you 24 hours a day!
